Scintillator type:NaI(Tl)
Scintillator size:Φ50×50mm
SiPM Array：16 pcs ONSEMI C60035
Energy resolution(137Cs)：≤7.5%
Output Signal Polarity：+5V
Operating voltage：Positive
Operating Temperature：-40~+55 ℃

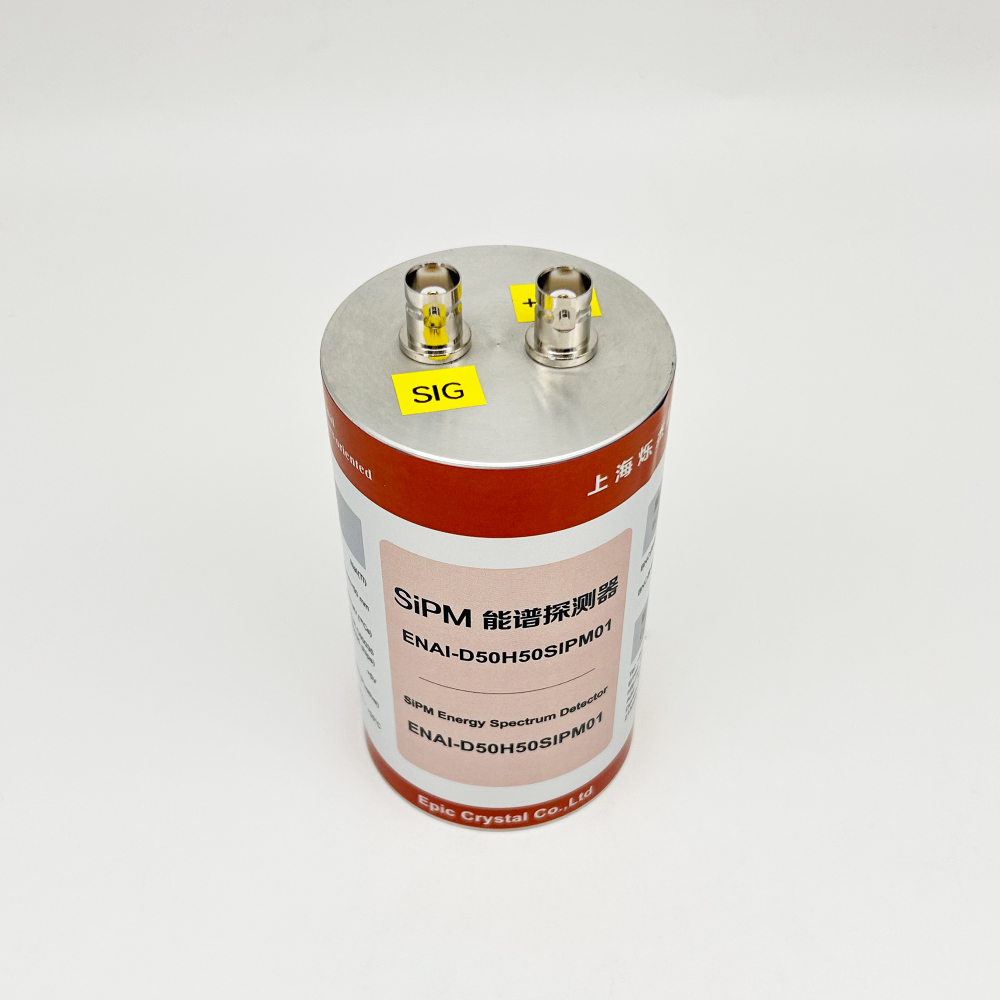

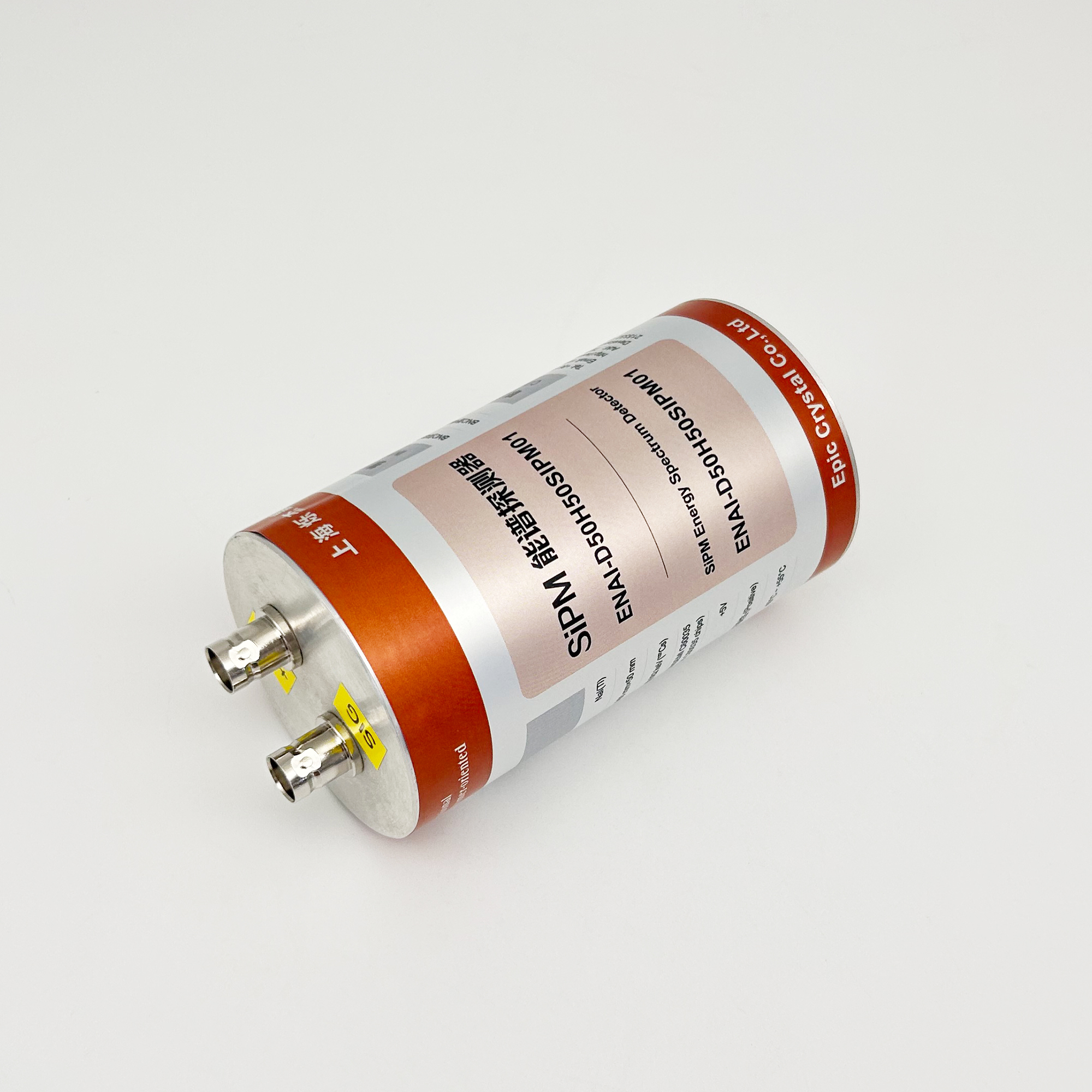

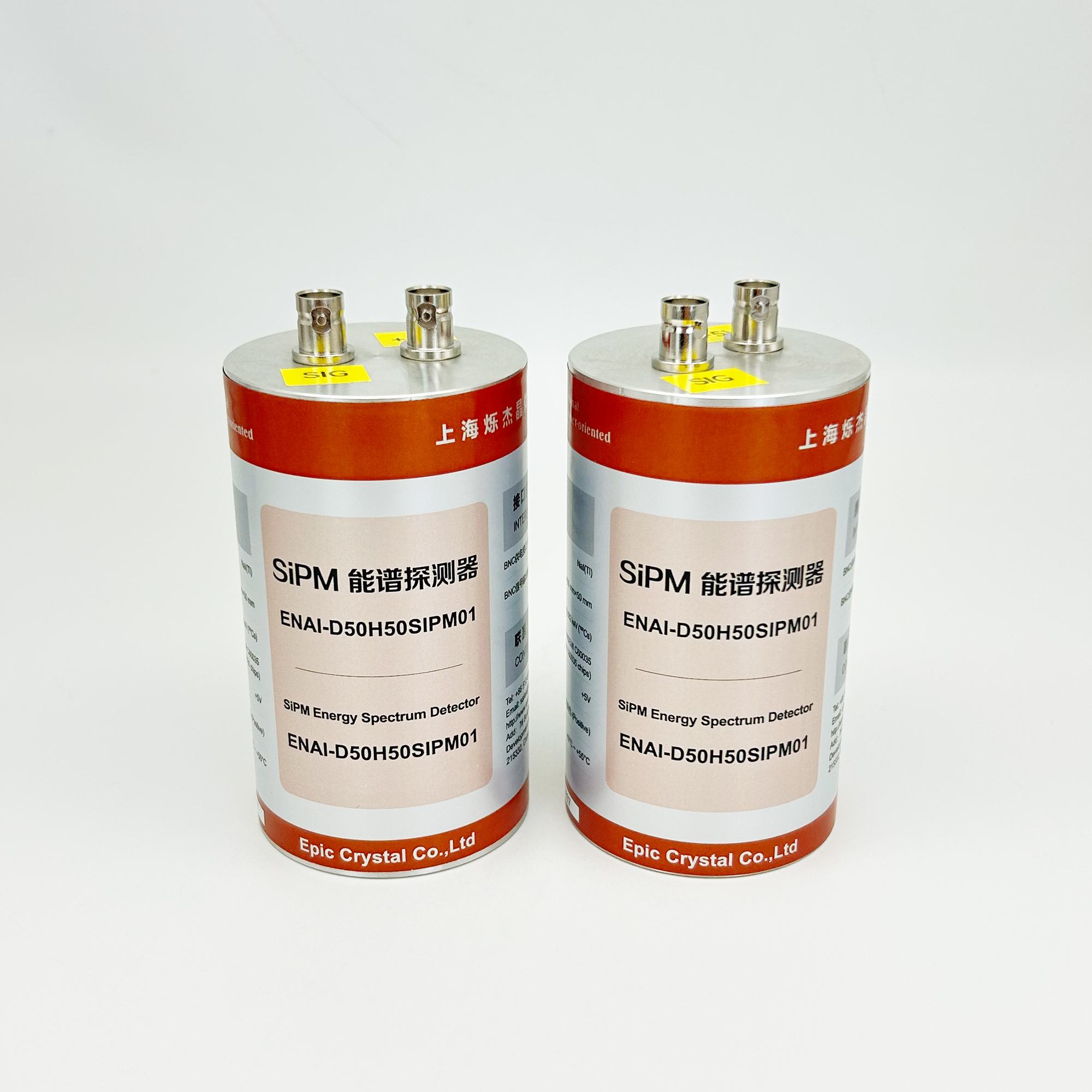

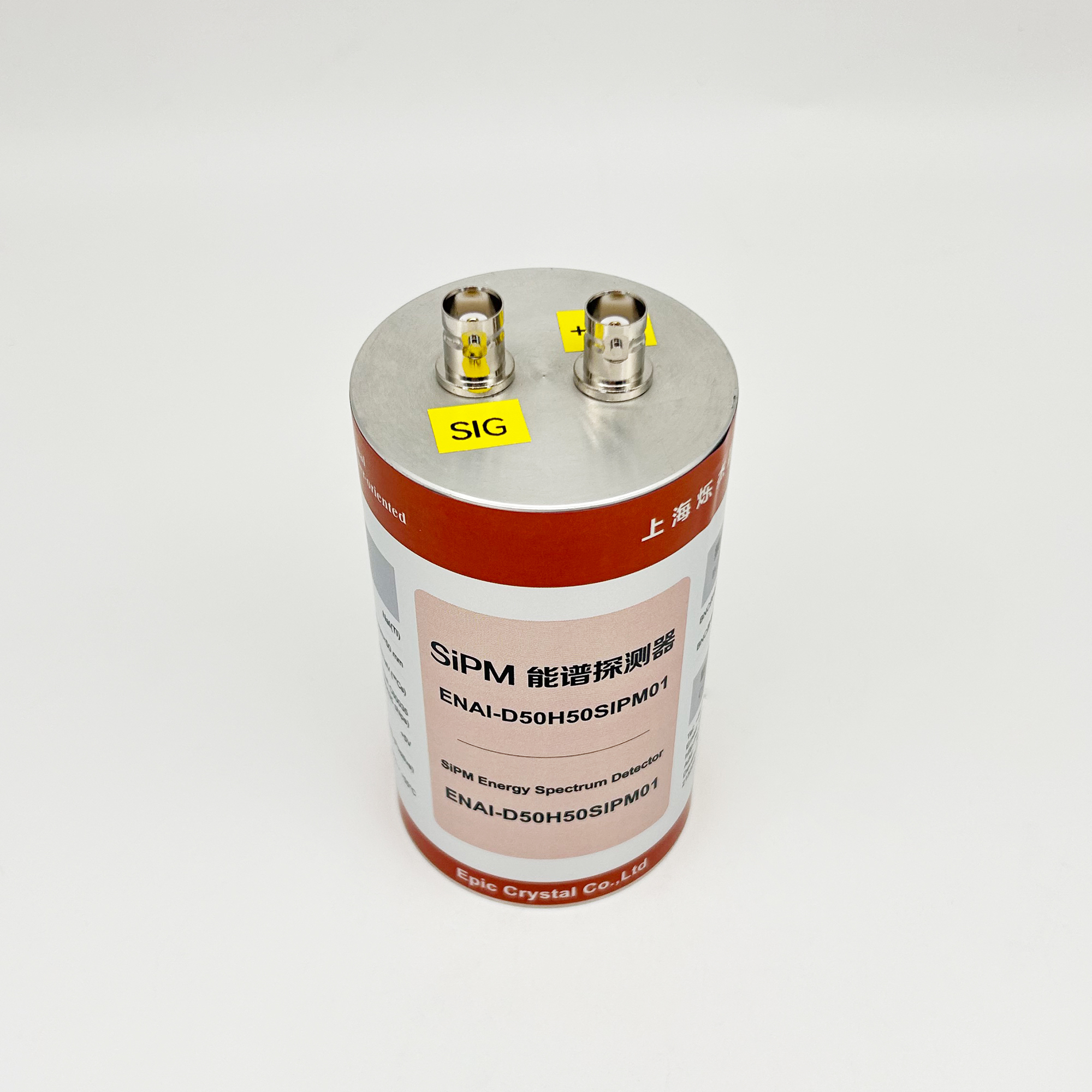

The ENAI-D50H50SIPM01 is a highly integrated radiation detector engineered for high-precision energy spectroscopy. It integrates and optimizes key components—including a 2-inch NaI(Tl) scintillation crystal, sixteen ON Semiconductor C60035 Silicon Photomultipliers (SiPMs), a precision summing circuit, and a low-noise preamplifier—into a single, compact, and high-performance detection module.
Combining excellent energy resolution, outstanding reliability, and simplified system integration, the ENAI-D50H50SIPM01 significantly reduces development complexity and total system cost. It is ideally suited for demanding applications such as industrial process control, nuclear medicine diagnostics, and environmental radiation monitoring—delivering stable, accurate, and dependable core detection performance for a wide range of radiation measurement and analysis systems.
