Scintillator type:NaI(Tl)
Scintillator size:Φ25×25mm
SiPM Array：4 pcs ONSEMI C60035
Energy resolution(137Cs)：≤7.5%
Output Signal Polarity：+5
Operating voltage：Positive
Operating Temperature：-40~+55

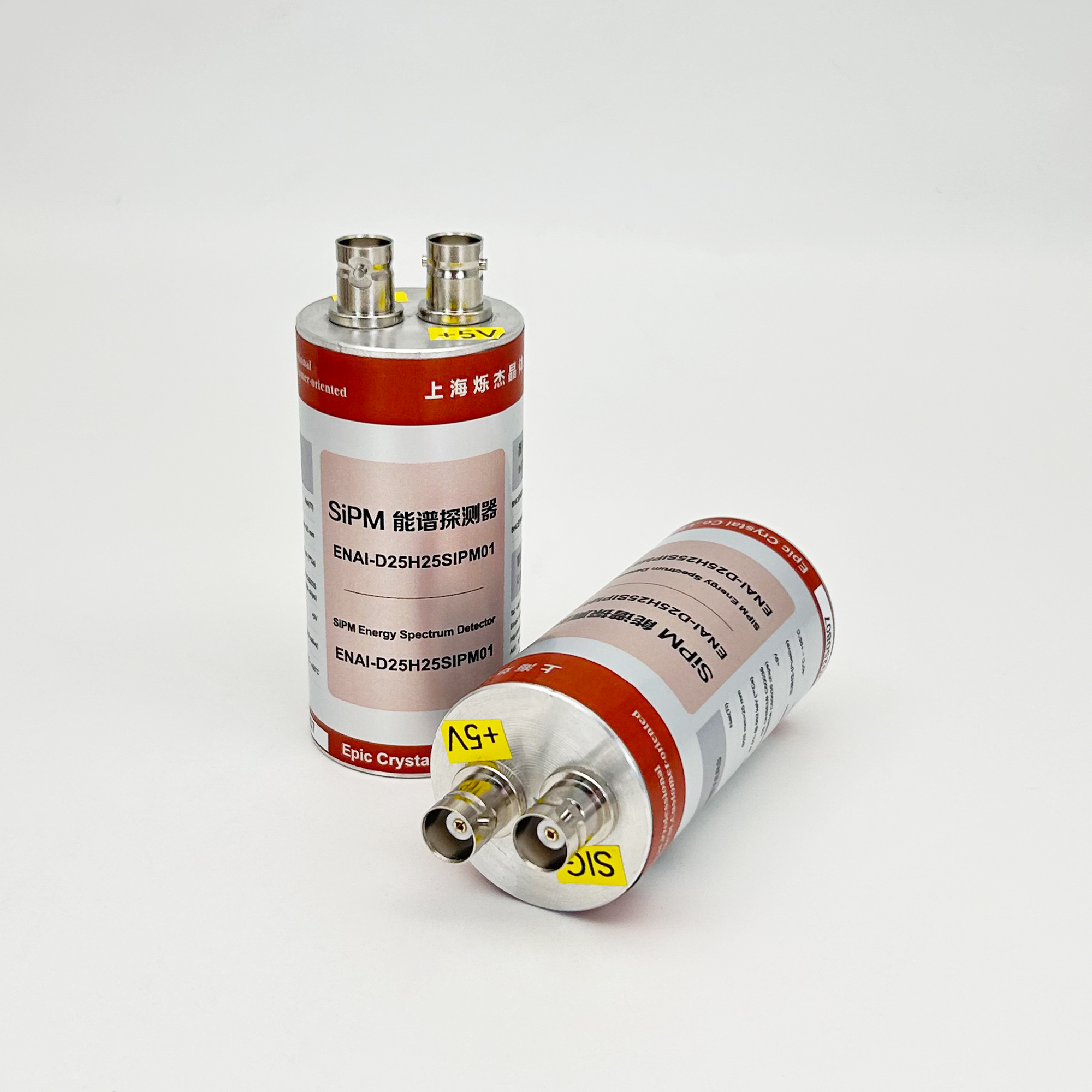

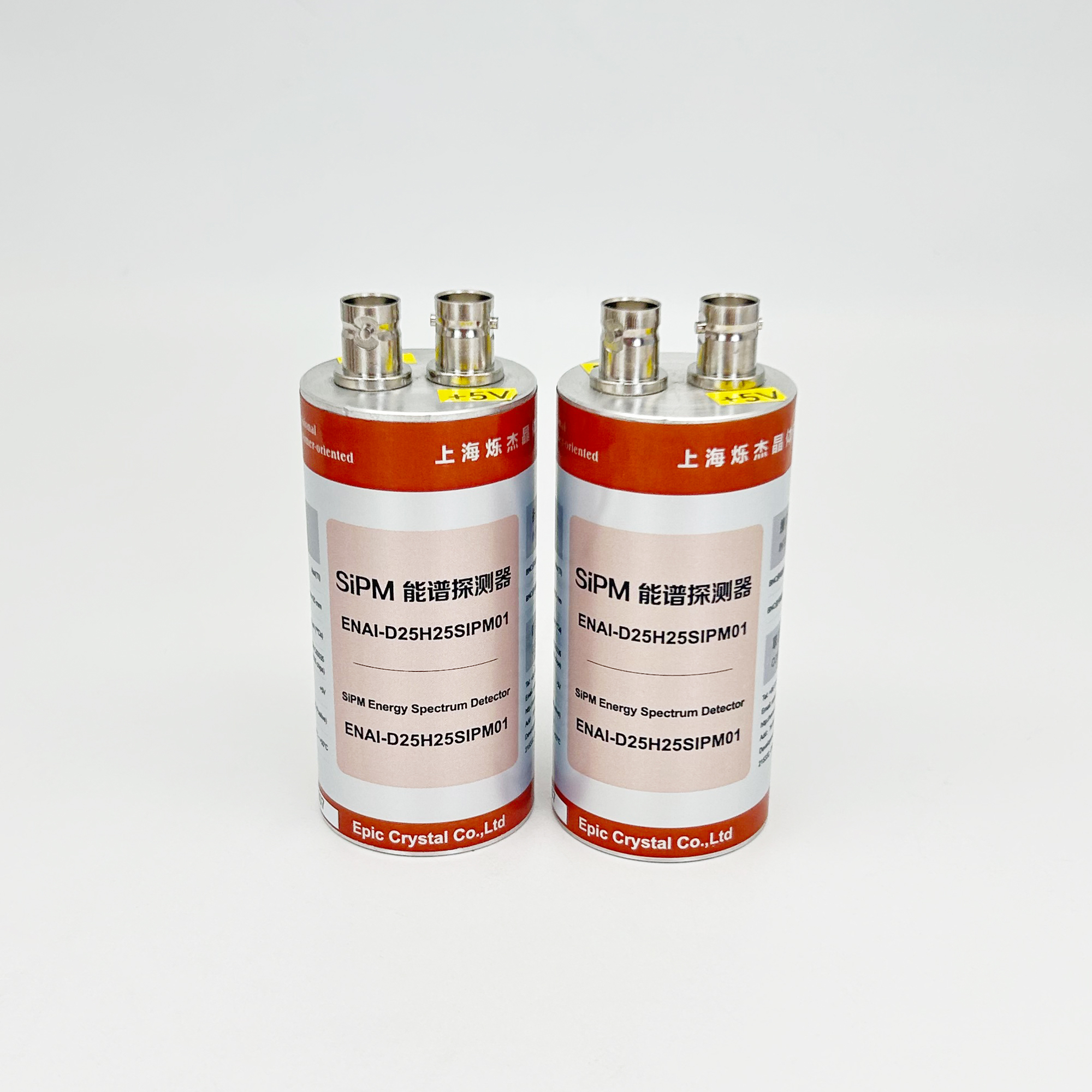

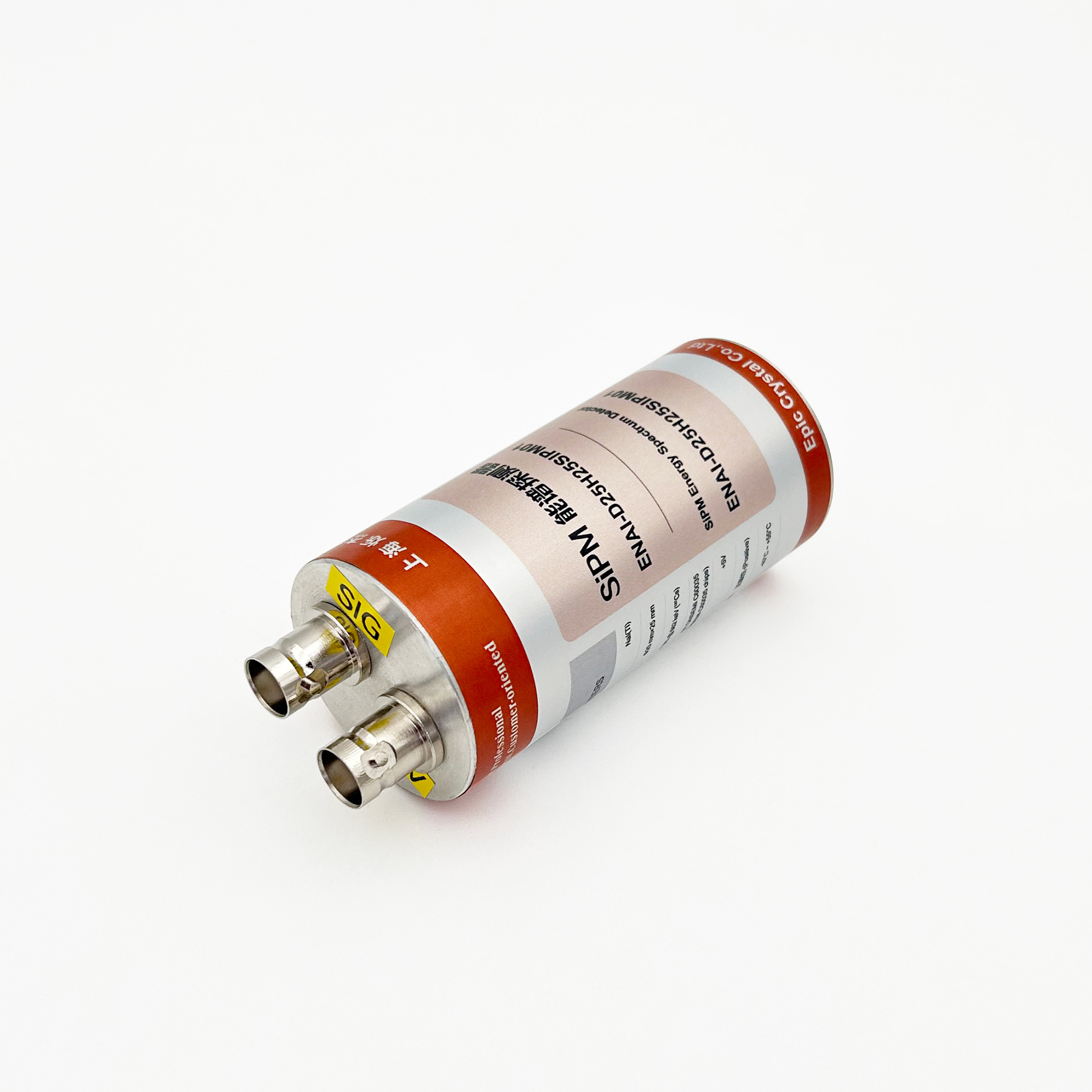

The ENAI-D25H25SIPM01 is a highly integrated radiation detector engineered for high-precision energy spectroscopy. It combines key components—including a 1-inch NaI(Tl) scintillation crystal, four ON Semiconductor C60035 Silicon Photomultipliers (SiPMs), a summing circuit, and a low-noise preamplifier—into a single, compact, and high-performance detection module.
Designed for exceptional energy resolution and outstanding reliability, the ENAI-D25H25SIPM01 significantly simplifies system integration while reducing development time and cost. Its robust performance makes it an ideal solution for demanding applications such as industrial process monitoring, nuclear medicine diagnostics, and environmental radiation surveillance—delivering stable, accurate, and dependable detection capabilities for a wide range of radiation measurement and analysis systems.
