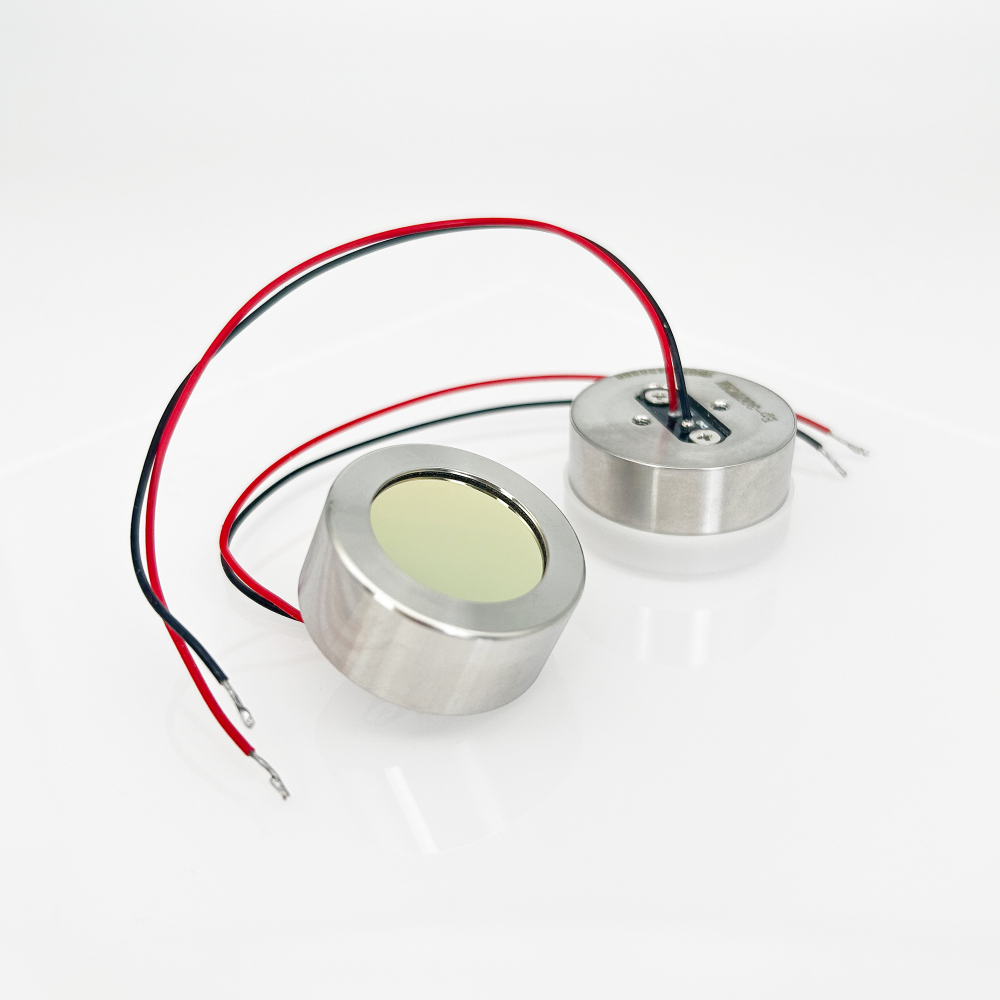

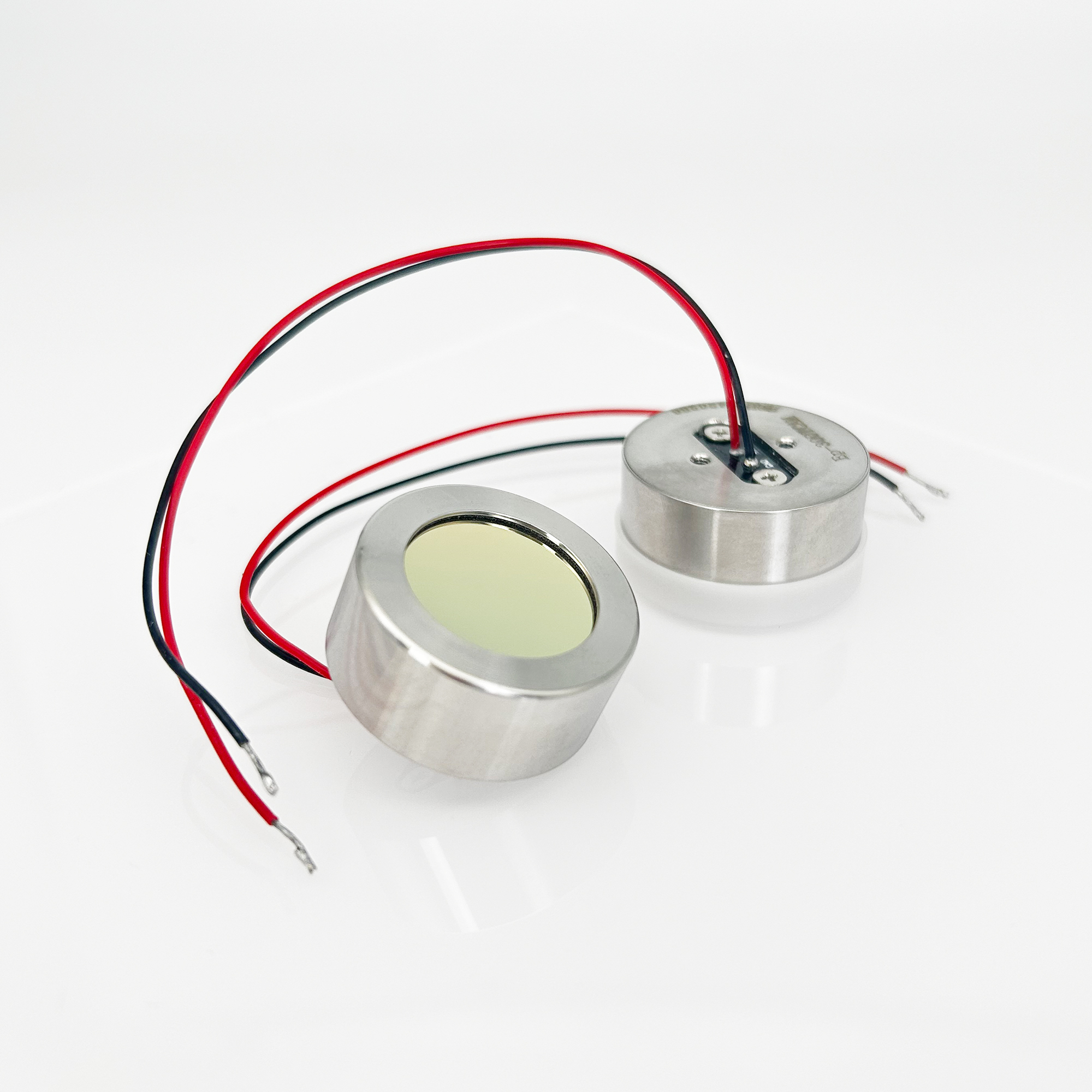

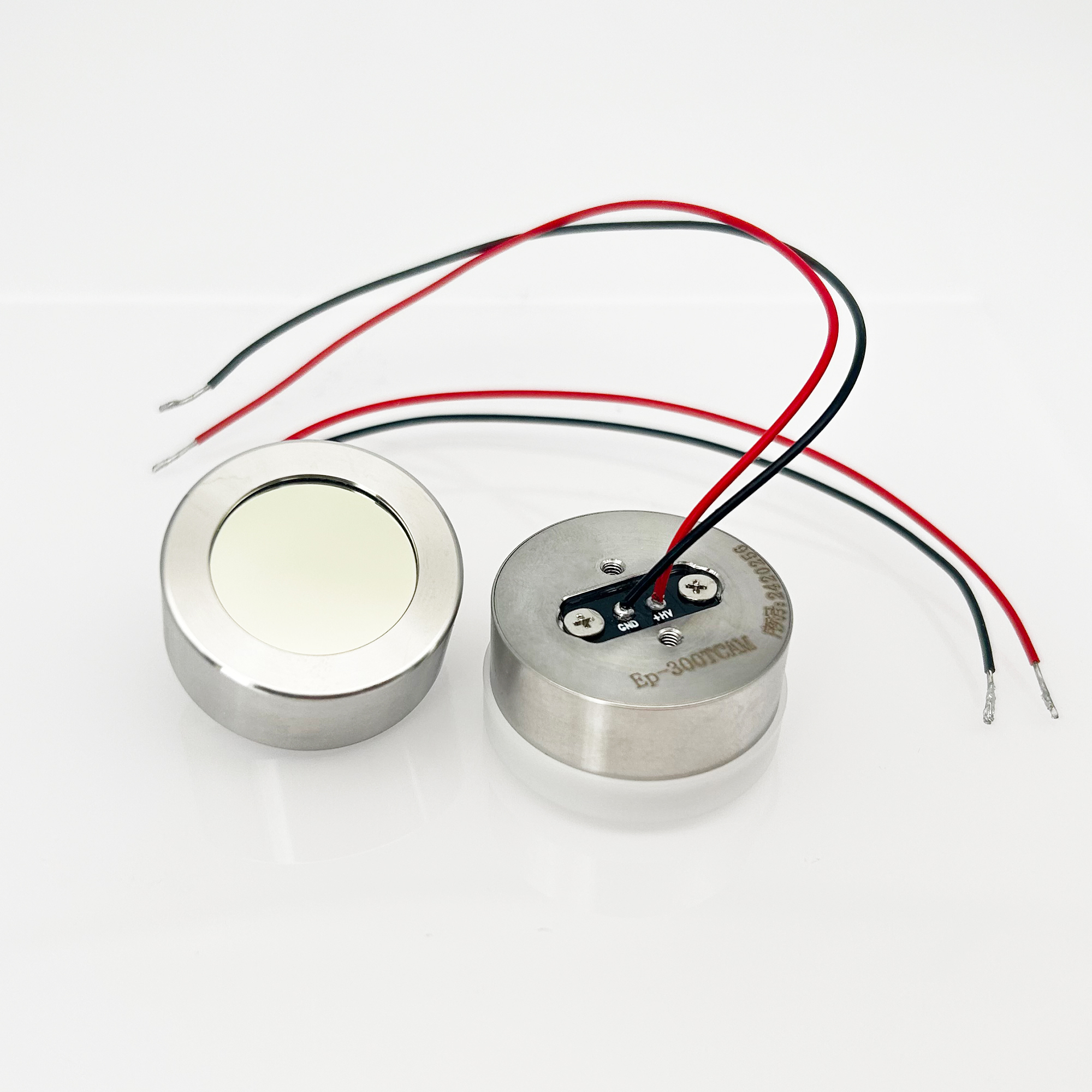

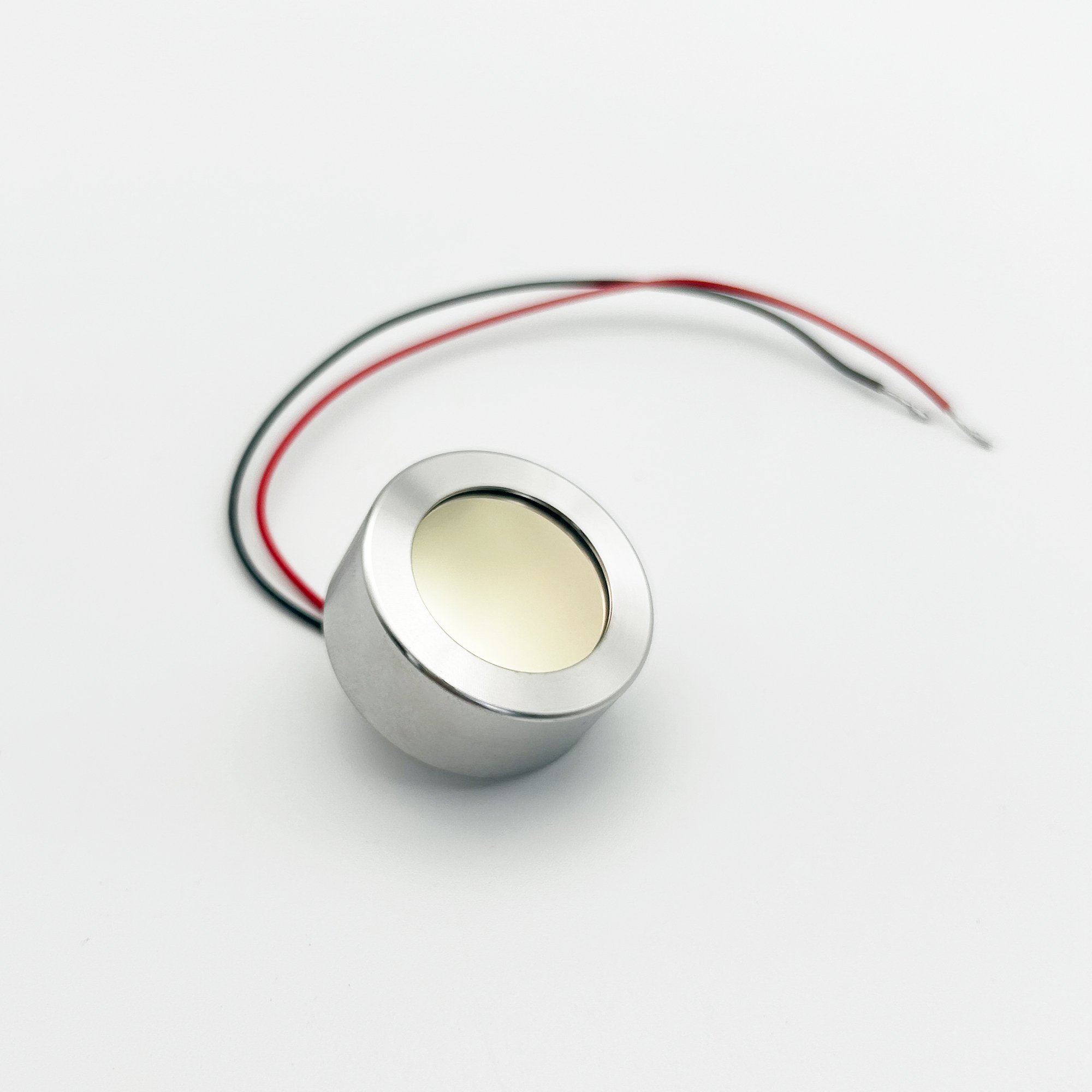

EP-TCAM Series Continuous Air Monitoring
No.CPIC-EP-300TCAM
Effective area (mm2): 314
Thickness (min/max): 20
Effective diameter (mm):500 μm
Bias voltage (min/max):15/90 V
Bias voltage (recommend): 70V
Work temperature(min/max): -40/+50 ℃
Storage temperature (max):+100 ℃
20C Leakage Current (Typ/Max):15/40 nA
a Energy resolution@15-24V(FWHM-keV): 36
a Energy resolution@70V(FWHM-keV): 34
β Energy resolution@70V(FWHM-keV):15
βShreshold @70V:18
(0 Reviews)
0 Sold
$1,610.00
