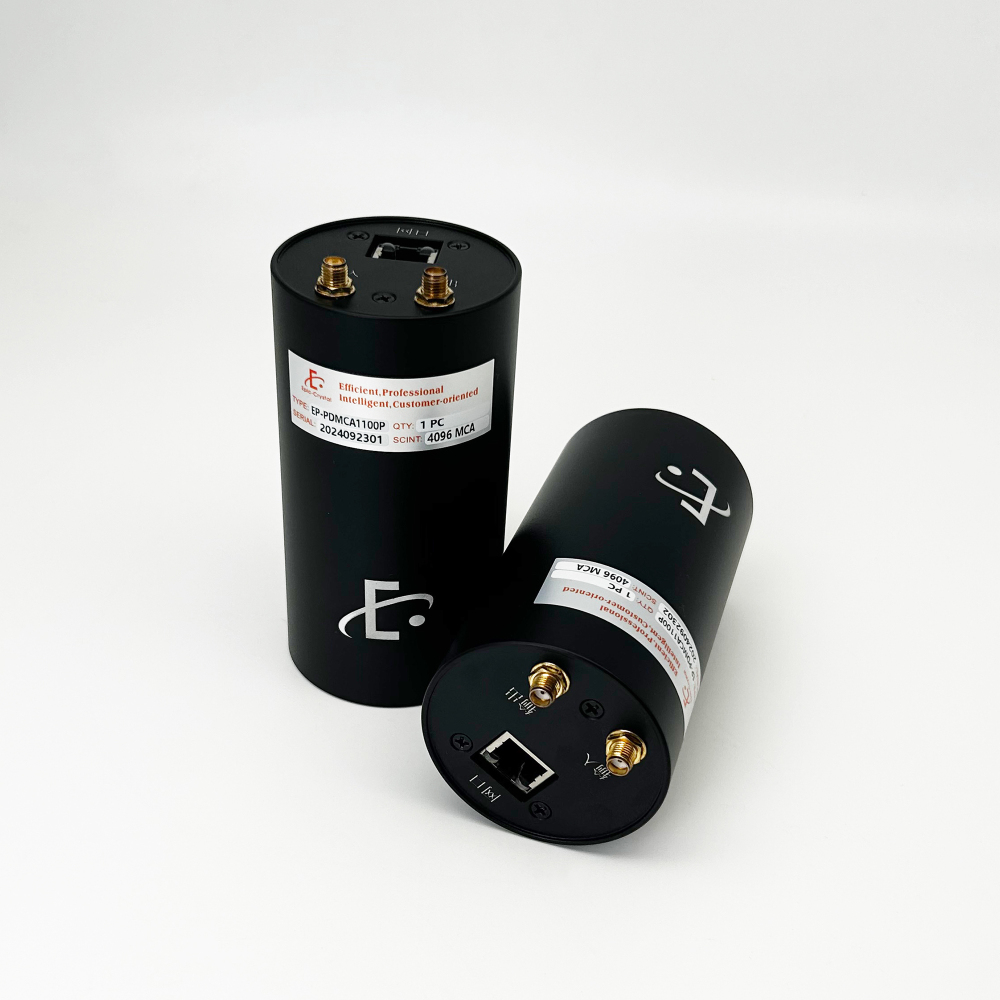

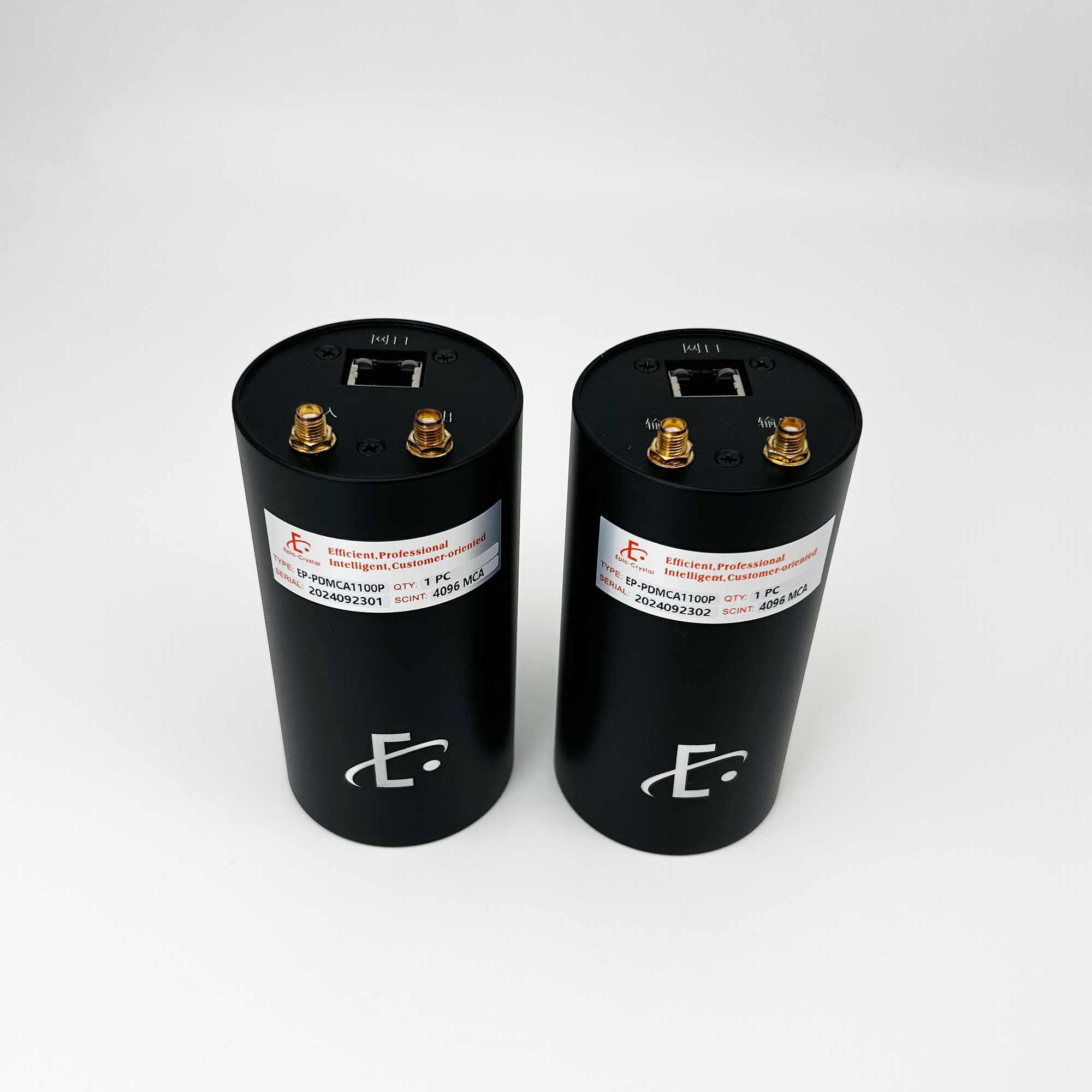

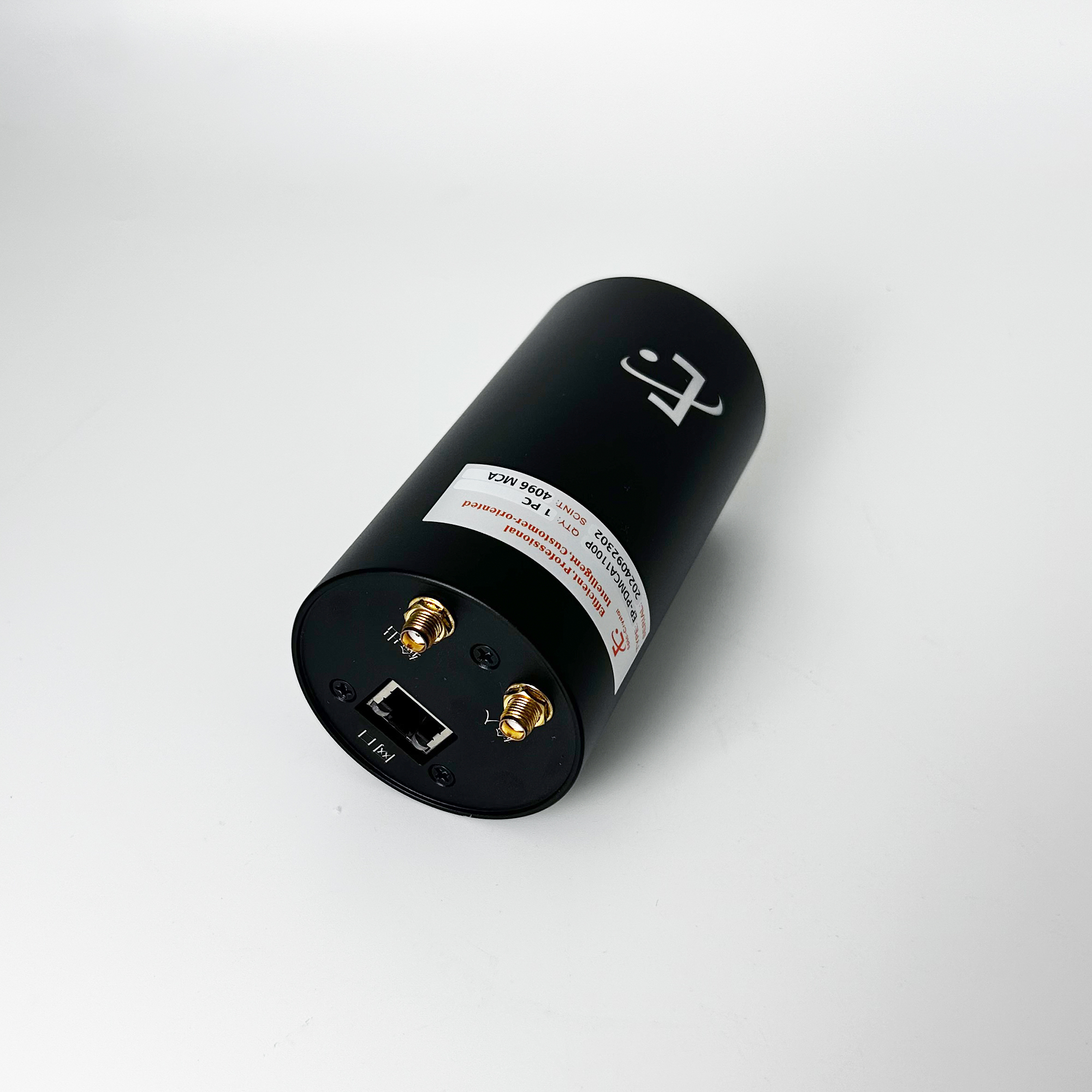

MCA, EP-PDMCA1100P, Digital multichannel pulse amplitude analyzer,Multichannel Analyzers
No.CPM-EP-PDMCA1100P
1. Spectral resolution: 1024 to 8192 channels
2. Software-adjustable molding time, adjustable range: 0.2 ~ 12.8us
3. 3 steps coarse gain can be adjusted, 0.5 ~ 1.5 times fine gain can be adjusted,system zero point can be adjusted
4. Digital back-stacking, digital gating, digital baseline recovery
5. With digital inverse Compton scattering/inverse cosmic ray interface
6. Temperature acquisition function, convenient for users to compensate the temperature of the probe
7. High voltage: 0V ~ 1100V DC, Step 1V
8. Stable and reliable for long time operation, zero drift less than 1 scale within 72 hours, gain instability less than two thousandths within 72 hours
9. Zero temperature coefficient: less than 0.2 scale /℃
10. Gain temperature coefficient: less than 0.1% /℃
11. Communication mode: Ethernet communication, maximum communication distance of 100 meters
12. System throughput: 200Kcps
13. Dimensions: 63Φ×86L mm
14. Weight: <300g
15. Power supply: POE, Power consumption <1.5W
16. One year free hardware warranty and lifetime free software upgrades
17. Open all software interfaces to facilitate user secondary development
18. Equipped with basic spectral analysis software: GammaSense
2. Software-adjustable molding time, adjustable range: 0.2 ~ 12.8us
3. 3 steps coarse gain can be adjusted, 0.5 ~ 1.5 times fine gain can be adjusted,system zero point can be adjusted
4. Digital back-stacking, digital gating, digital baseline recovery
5. With digital inverse Compton scattering/inverse cosmic ray interface
6. Temperature acquisition function, convenient for users to compensate the temperature of the probe
7. High voltage: 0V ~ 1100V DC, Step 1V
8. Stable and reliable for long time operation, zero drift less than 1 scale within 72 hours, gain instability less than two thousandths within 72 hours
9. Zero temperature coefficient: less than 0.2 scale /℃
10. Gain temperature coefficient: less than 0.1% /℃
11. Communication mode: Ethernet communication, maximum communication distance of 100 meters
12. System throughput: 200Kcps
13. Dimensions: 63Φ×86L mm
14. Weight: <300g
15. Power supply: POE, Power consumption <1.5W
16. One year free hardware warranty and lifetime free software upgrades
17. Open all software interfaces to facilitate user secondary development
18. Equipped with basic spectral analysis software: GammaSense
