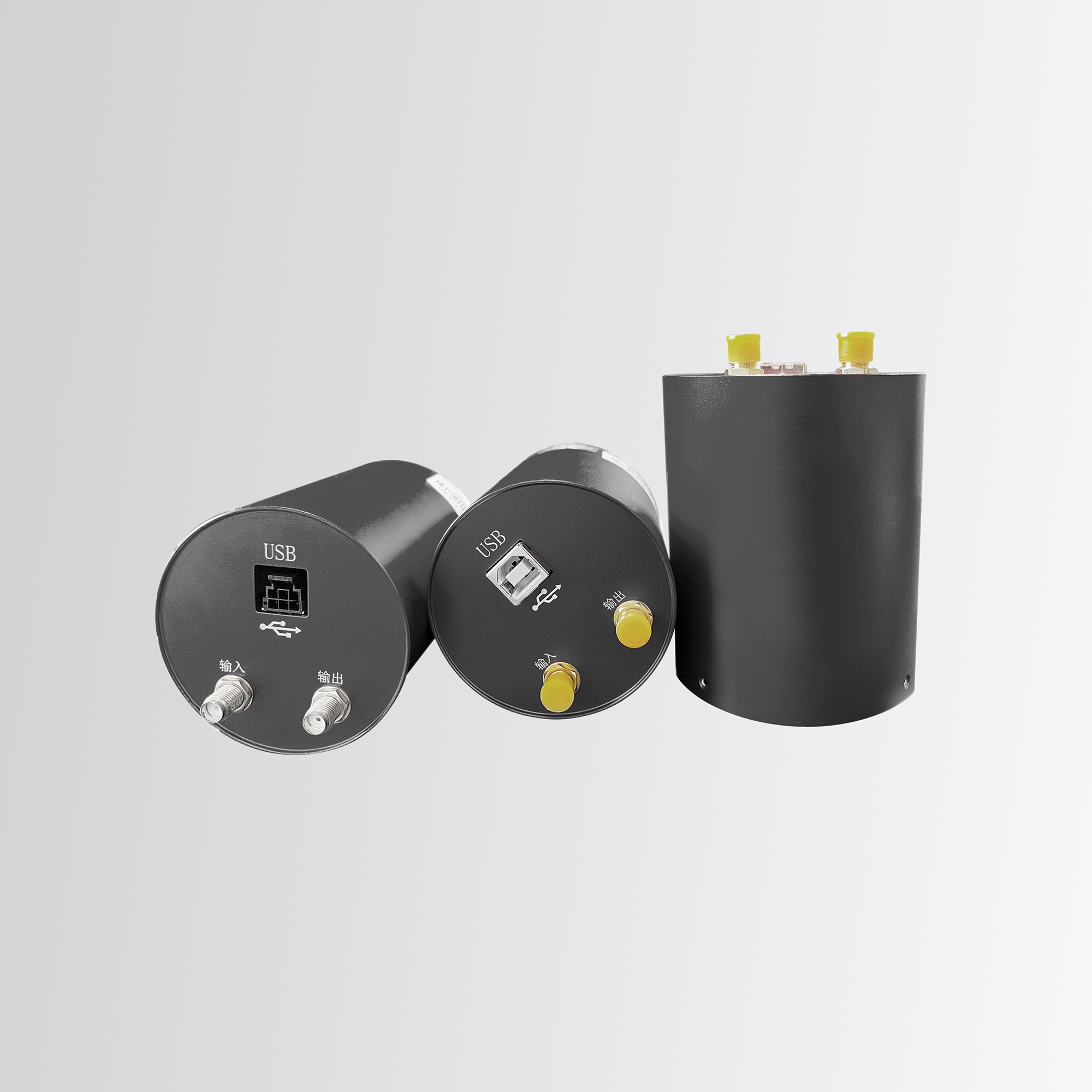

MCA,EP-PDMCA1100A, Energy Spectrum Analysis Digital Multichannel Pulse Amplitude Analyzer,Multichannel Analyzers
1. 3 steps coarse gain software adjustable, 0.5~1.5 fine gain software adjustable
2. With digital pulse buildup suppression and baseline recovery function
3. High voltage digital controllable
4. Spectral resolution: 1024 to 4096 channels
5. Integral nonlinearity: <±0.02%, Differential nonlinearity: <±0.8%
6. System throughput: 200Kcps
7. Stable and reliable for long time operation, 72 hours zero drift is less than 1 channel, 72 hours gain
instability is less than 0.2%
8. Baseline temperature coefficient: Less than 0.2 channels per degree Celsius
9. Gain temperature coefficient: <0.1%/℃
10. Power supply: +12V, Power consumption: <2W
11. Two sets of RS485 outputs, one set for standard Modbus RTU output, one set for upper computer
debugging work, two RS485 can work at the same time, convenient for users to debug and compare
12. The communication distance is very long, enabling reliable communication over a transmission distance of
60 meters
13. The system has a fast response time, and the energy spectrum analysis results can be obtained after 7
seconds after powering on the system
14. Built-in all-digital energy spectrum stabilization program, can be specified for specific energy peaks for energy
spectrum stabilization. Peak drift of less than 1 scale for 24 hours of continuous measurement
15. Energy scaling and efficiency scaling are available and key parameters can be stored offline
16. Energy spectra can be analyzed to calculate the net peak area in a specified energy region, as well as to
perform nuclide recognition and provide net peak area or incremental information
