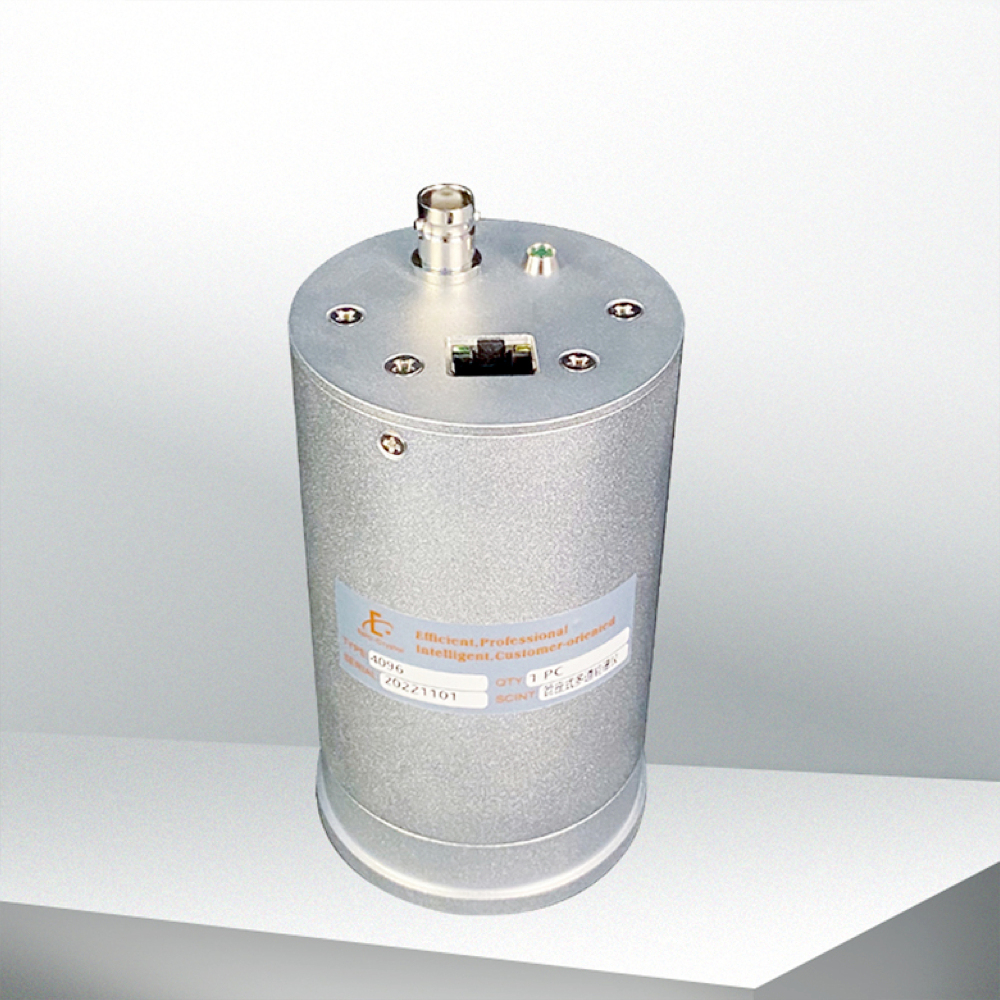

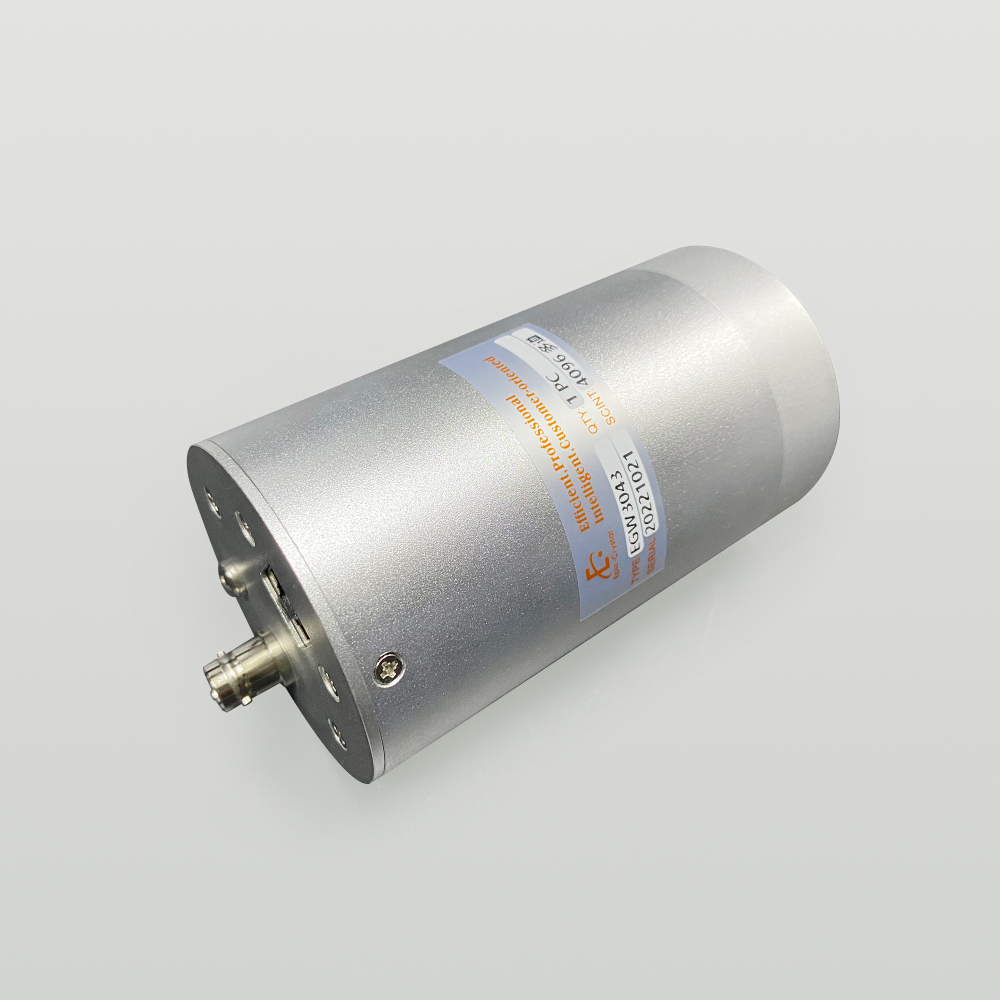

MCA,EGW3043 Tube Base Multi-Channel Analyzer
1. MCA Resolution: 4096
2. Sample hold and ADC conversion time: 2μs
3. Input pulse analysis range: 0~+5V
4. Input count rate: 100kcps (20% count rate loss), suitable for high γ
intensity application
5. Data interface: TCP/IP (RJ45)
6. Built-in voltage divider and Pre- amplifier and main amplifier, built-in
high-voltage power
7. Data output mode: List mode/Spectrum mode
8. Matching software function: energy spectrum acquisition,display, ROI analysis,
energy spectrum smoothing, automatically finding peak and identifying isotopes, etc.
9. Provide data communication protocol, users can develo collection and processing programs by themselves based on the communication protocol
10. It can be matched with NaI(Tl), LaBr3(Ce) and other scintillation detector, and can be used via 14-pin E687-14W tube socket connecting with the photomultiplier tube
(PMT) with 8-level or 10-level dynode structure
