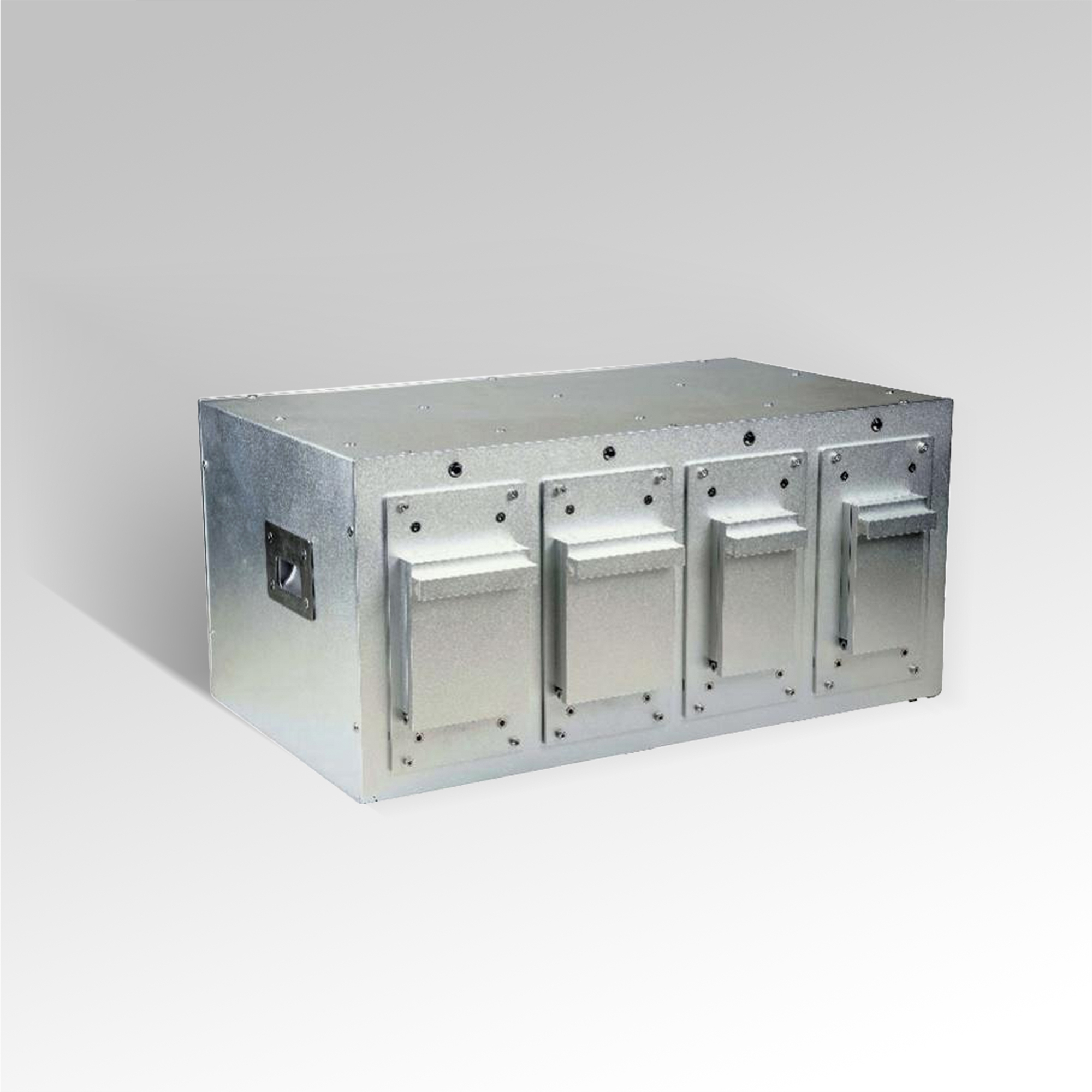

Alpha Spectrometer APD8428

EPIC-APD8428 is a PIPS semiconductor detector Alpha spectrometer, supporting four Alpha spectra measurement simultaneously. It consists of vacuum measurement chamber, PIPS detector, preamplifier circuit board, high and low voltage power supply and single channel control board, high performance digital multi-channel board, vacuum sensor and vacuum solenoid valve. With spectrometer hardware control, spectrometer status information acquisition and display, spectrometer data readout and management functions.

Functional indicators

Plug-in combination design for quick removal and installation

Supports simultaneous measurement of four Alpha energy spectra, and the number of system channels can be freely configured

The system design consists of a high-resolution spectrometer and a mechanical vacuum control section

With spectrometer hardware control, spectrometer status information acquisition and display, spectrometer data readout and management functions

Preamplifier type: charge sensitive preamplifier

Communication interface: USB2.0 or RJ45

Power supply and interface: AC220V 50Hz

Performance parameters

（1）Detector indicators

  Detector: PIPS detector

  Energy range: 3-10 MeV

  Energy resolution: ≤24 keV (450 mm², detector-to-source distance equals detector diameter)

  Detector efficiency: ≥25% (450 mm²)

（2）Multi-channel technical indicators

  Energy channel address: 256, 512, 1024, 2048, 4096, 8192 channel selectable

  ADC parameter: 16 bit,80 MSPS

  Linearity: Integral non-linearity ≤ 0.05%, differential non-linearity ≤ 1%

  Multi-channel gain: 0.01-10 times adjustable

  Bias adjustment: 0-200 V digital adjustable, maximum output current 1mA

  Leakage current measurement range: 0-5000 nA

（3）Vacuum chamber index

  Vacuum chamber design: low background integrated design

  Maximum detector size: 1200 mm² and 3000 mm² are available

  Maximum diameter of sample: 51 mm

  Sample to detector distance: 1-45mm in 4 mm steps

  Vacuum degree: 0-26.7 kPa, software can display

  Background count rate: above 3 MeV, average count rate per hour ≤ 1

（4）Whole machine index

  Operating voltage: DC24V

  Communication interface: TTL or USB2.0 or Ethernet interface

  Working temperature: -10 ℃~50 ℃

  Relative humidity: 30%~80%, non-condensing
